DayPilot Pro 4.2

Released on November 10, 2007 (build 1264).

Features

F50 CSS class styling (DayPilot Calendar & DayPilot Scheduler)

It is be possible to set selected style properties using CSS class rather than by control properties:

Headers:

  • background-color
  • color
  • font-size
  • font-family

Events:

  • background-color
  • color
  • font-size
  • font-family

Background cells:

  • background-color

Border between hour cells (DayPilot Calendar):

  • border-bottom

Border inside an hour (DayPilot Calendar only):

  • border-bottom

Border between cells (DayPilot Scheduler only):

  • border-right

These classes definitions can be overriden by setting the individual styles (just like in regular HTML).

Declaration example:

Style:

<style type="text/css">
.daypilot.event {
    background-color: lightyellow;
    color: #808080;
    font-family: Tahoma;
    font-size: 8pt;
} .daypilot.header {
    font-family: Tahoma;
    font-size: 10pt;
    background-color: silver;
} .daypilot.cellbackground {
    background-color: white;
}

.daypilot.hourcellborder {
    border-bottom: 1px solid red;
}

.daypilot.hourhalfcellborder {
    border-bottom: 1px solid green;
}

</style>

DayPilotCalendar:

<DayPilot:DayPilotCalendar ID="DayPilotCalendar1" runat="server" DataSourceID="XmlDataSource1"
        DataTextField="name" DataValueField="id" StartDate="2007-01-01" DataStartField="Start"
        DataEndField="End" Days="7" Width="100%" EventBackColor="" EventFontFamily="" HourNameBackColor=""
        EventFontSize="" HeaderFontFamily="" HeaderFontSize="" NonBusinessBackColor="" BackColor=""
        HourBorderColor="" HourHalfBorderColor="" CssClass="daypilot"
>
    </DayPilot:DayPilotCalendar>

(F15) Bubbles (DayPilot Calendar & DayPilot Scheduler)

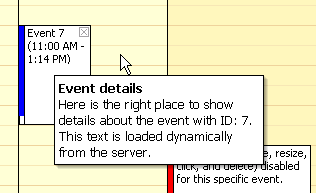

DayPilot Bubble shows event details when mouse stays on an event for a while.

  • DayPilot Bubble is a separate control that is assigned to DayPilot Calendar/DayPilot Scheduler control using BubbleID property.
  • It is shown at the cursor location, taking the window boundaries into account (it always shows in the visible window area).
  • The bubble tries not to be obtrusive:
    • The ShowAfter countdown starts only when you stop moving the mouse.
    • The bubble doesn't show if the cursor is inside an action area (when the cursor is changed to indicate moving or resizing, when the cursor is over the delete button).
  • It disappears when you move the mouse out of the bubble and out of the event or when you click on the bubble.
  • The content is loaded dynamically from the server.
  • When the bubble is to be shown, it sends the event ID (from DataValueField) to the server-side event DayPilotBubble.RenderContent where you can specify the content using e.InnerHTML property.
  • Any HTML can be shown, including formatted text, images, etc.
  • Rendering ASP.NET controls inside the bubble is not supported.

Customizable properties:

  • Width (height is adjusted automatically according to the content)
  • BackColor (color of the bubble background)
  • BorderColor (color of the bubble border)
  • ShowAfter (miliseconds before it shows up)
  • HideAfter (miliseconds before it hides when the mouse goes out of the bubble or the event)
  • UseShadow (whether the bubble should have a shadow)
  • LoadingText (The message to be shown while the content is being loaded from the server)

Usage

  • Bubbles are activated automatically for DayPilotCalendar/DayPilotScheduler when you assign the BubbleID property.
  • The original ToolTips are not automatically turned off (You should set ShowToolTip to "false"). This might change in a future release.

Example

Assigning

    <daypilot:daypilotcalendar id="DayPilotCalendar1" runat="server"
        ...
        BubbleID="DayPilotBubble1"
        ShowToolTip="False"
        ></daypilot:daypilotcalendar>

DayPilotBubble declaration

    <DayPilot:DayPilotBubble ID="DayPilotBubble1" runat="server"
       OnRenderContent="DayPilotBubble1_RenderContent" ClientObjectName="bubble">
    </DayPilot:DayPilotBubble>

Content generation

    protected void DayPilotBubble1_RenderContent(object sender, BubbleRenderContentEventArgs e)
    {
        e.InnerHTML = "<b>Event details</b><br />Here is the right place" +
          "to show details about the event with ID: " + e.Argument +
          ". This text is loaded dynamically from the server.";
    }

Other

DayPilot Calendar

DayPilot Scheduler

  • FIX: Too long resource name was wrapping in IE and was destroying the header/cell alignmend.
  • FIX: ToolTip property set in the ASPX declaration for DayPilotScheduler Resource was ignored (<DayPilot:Resource Name="Room C" Value="C" ToolTip="Test" />).

Demo

  • FIX: SQL queries fixed in DemoSQL.
